Drillsense LWD

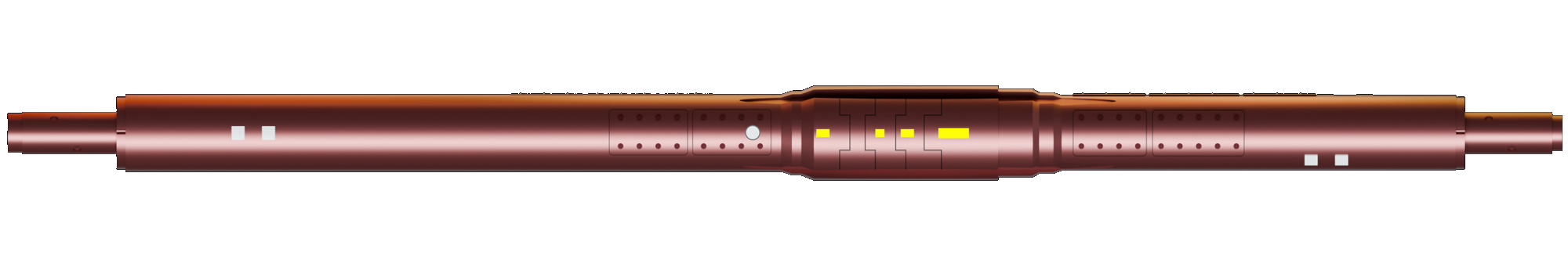

Tool Architecture

Drillsense LWD provides real-time apparent neutron porosity, formation bulk density, and photoelectric factor data to characterize formation porosity and lithology while drilling. Tool sizes include 8 1/4 in, 6 3/4 in, and 4 3/4 in.

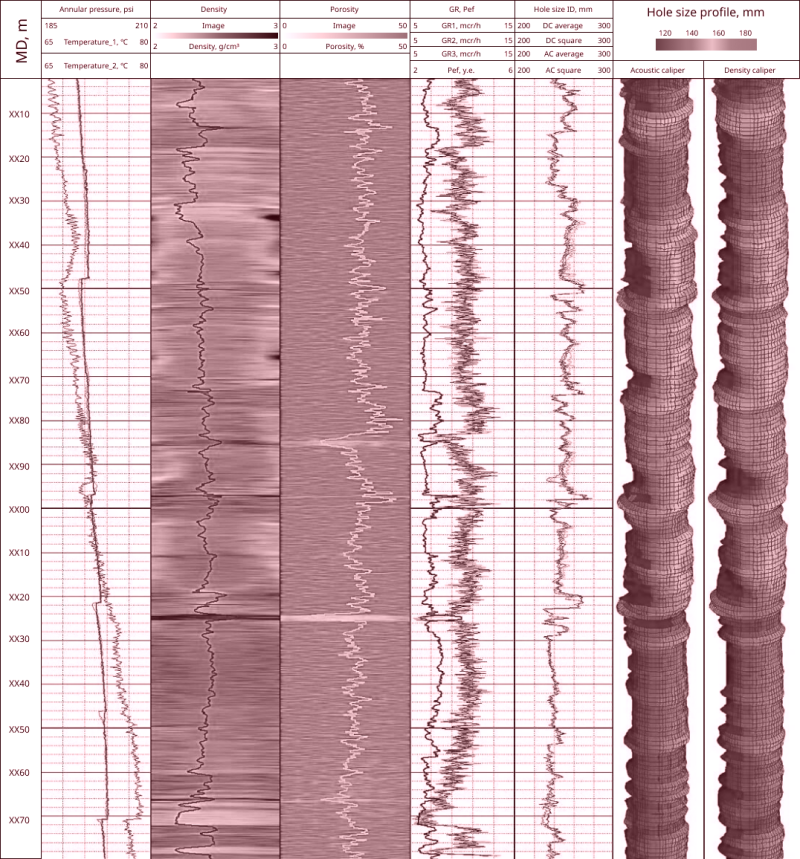

Azimuthal measurements provide density and porosity images for accurate formation evaluation. Potential pay zones can be detected and quantified early. Gas, oil, and other fluid contacts can be determined in real time while drilling. Acoustic caliper sensors supplement density caliper estimation with direct accurate hole size measurements

Technical SPECIFICATIONS

Technical SPECIFICATIONS
Parameter 475 675
Length, mm 3 330 3 130
Body diameter, in 4¾" 6¾"
Max. Stabiliser Diameter, in 5³⁄₈" – 6¹⁄₈"  8½"
Hole size, in 5¹⁹⁄₃₂" – 6¹⁹⁄₃₂" 8½" – 8¾"
Total weight, lbs 595 1 102
Operating temperature range, °F:
when working in the well 50 – 302
during programming and checks -49 – 140
Parameter 475 675
Length, mm 3 330 3 130
Body diameter, in 4¾" 6¾"
Max. Stabiliser Diameter, in 5³⁄₈" – 6¹⁄₈"  8½"
Hole size, in 5¹⁹⁄₃₂" – 6¹⁹⁄₃₂" 8½" – 8¾"
Total weight, lbs 595 1 102
Operating temperature range, °F:
when working in the well 50 – 302
during programming and checks -49 – 140
Maximum pressure, psi 19 870 14 500
Battery life, h 240
Vibration resistance, g 20
Max shock, g 50
Max flowrate, gpm 380 1 030
Connections NC38/ NC38 NC50/NC50
Locking thread torque, lbs·ft 8261 – 9883 25077 – 26552
Parameter 475 675
Maximum pressure, psi 19 870 14 500
Battery life, h 240
Vibration resistance, g 20
Max shock, g 50
Max flowrate, gpm 380 1 030
Connections NC38/ NC38 NC50/NC50
Locking thread torque, lbs·ft 8261 – 9883 25077 – 26552
