Rotary-Steerable System

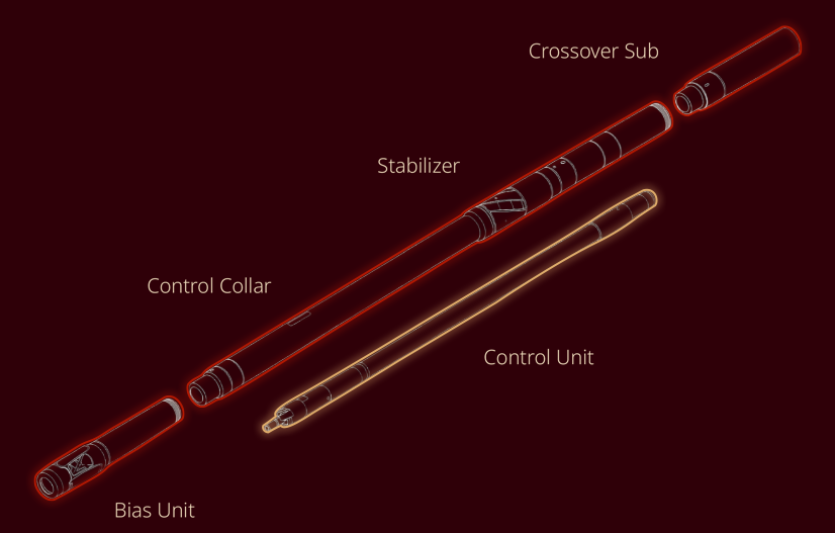

Tool Architecture

Two main sections of RSS:
Bias unit
build into a main body with three blades which convert hydraulic pressure drop into mechanical energy that push the blades against the formation and steer the well
Control collar
consists of an outer housing (drill collar) and an internal Control Unit
The Control Unit contains:
  • electronic and sensor chassis
  • upper and lover bearing
  • suspensions
  • austenitic pressure housing
  • turbine altermators
  • antenna

Technical SPECIFICATIONS

Parameter 475 675
Nominal OD, in 4¾" 6¾"
Hole size, in 5¾" – 6⅛" 8½" – 8¾"
Mud WBM, OBM, SBM
Max. temperature, °C [°F] 150 [302]
Max. RPM 350
Max. pressure, psi 20 000
Max. build, °/100 ft 10 8
Flow rate range, gpm 120 – 355 210 – 970
Parameter 475 675
Nominal OD, in 4¾" 6¾"
Hole size, in 5¾" – 6⅛" 8½" – 8¾"
Mud WBM, OBM, SBM
Max. temperature, °C [°F] 150 [302]
Max. RPM 350
Max. pressure, psi 20 000
Max. build, °/100 ft 10 8
Flow rate range, gpm 120 – 355 210 – 970
Maximum weight on bit, lb·ft 31 000 180 000
Upper connection (top thread) NC38 box
Weight, lb 584
Length (with crossover sub), mm 1 350 1 353
Max torque on bit, lb·ft 9 000 18 500
Shock range, g 625
Max sand content, % 1
Lost circulation material, lbm/bbl 35 50
Parameter 475 675
Maximum weight on bit, lb·ft 31 000 180 000
Upper connection (top thread) NC38 box
Weight, lb 584
Length (with crossover sub), mm 1 350 1 353
Max torque on bit, lb·ft 9 000 18 500
Shock range, g 625
Max sand content, % 1
Lost circulation material, lbm/bbl 35 50
